Disel generator
Aksa APD 25 A

Model : APD 25 A

Product : AKSA

CONTROL SYSTEM : DSE 6020

Introduction

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сertificate

TS ISO 8528

TS ISO 9001-2008

SZUTEST

2000/14/EC

General Characteristics

Model Name		APD 25 A
Frequency (Hz)		50
Fuel Type		Diesel
Engine Made and Model		AKSA - A4CRX25
Alternator Made and Model		Aksa - AK 218
Control Panel Model		DSE 6020
Canopy		ASM 3

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP) (ESP)		PRIME RATING (PRP) (PRP)
VOLTAGE	kVA	kW	kVA	kW	Amp
400/231	25	20	23	18.40	36.09

STANDBY RATING (ESP) (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528. Overload is not allowed.

PRIME RATING (PRP) (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation,in accordance with ISO 3046.

Engine Specifications

Block Heater QTY
Engine		AKSA
Engine Model		A4CRX25
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	90 X 100
TOTAL DISPLACEMENT	L	2,54
Aspiration		Naturally Aspirated
COMPRESSION RATIO		18:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	10
Standby Power (kW/HP)		24.2/32 kW
Prime Power (kW/HP)		22/29.5 kW
Block Heater QTY		1
Block Heater Power (Watt)
Block Heater Power (Watt)		500
Fuel Type
Fuel Type		Diesel
Injection Type and System
Injection Type and System		Direct
Type of Fuel Pump
Type of Fuel Pump		Direct
Governor System
Governor System		Mechanic
Operating Voltage (Vdc)
Operating Voltage (Vdc)		12 Vdc
Battery and Capacity (Qty/Ah)
Battery and Capacity (Qty/Ah)		1x54
Cooling Method
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)
Cooling Fan Air Flow (m3/min)		180
Coolant Capacity (engine only / with radiator) (lt)
Coolant Capacity (engine only / with radiator) (lt)		20,0
Air Filter
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
Fuel Cons. Prime With %100 Load (lt/hr)		5.5
Fuel Cons. Prime With %75 Load (lt/hr)
Fuel Cons. Prime With %75 Load (lt/hr)		4,1
Fuel Cons. Prime With %50 Load (lt/hr)
Fuel Cons. Prime With %50 Load (lt/hr)		2.8

Alternator Specifications

Manufacturer		Aksa
Alternator Made and Model		AK 218
Frequency (Hz)	Hz	50
Power (kVA)	kVA	22,5
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
COOLING AIR (m³/min)	m3	5,7

Size and Weight

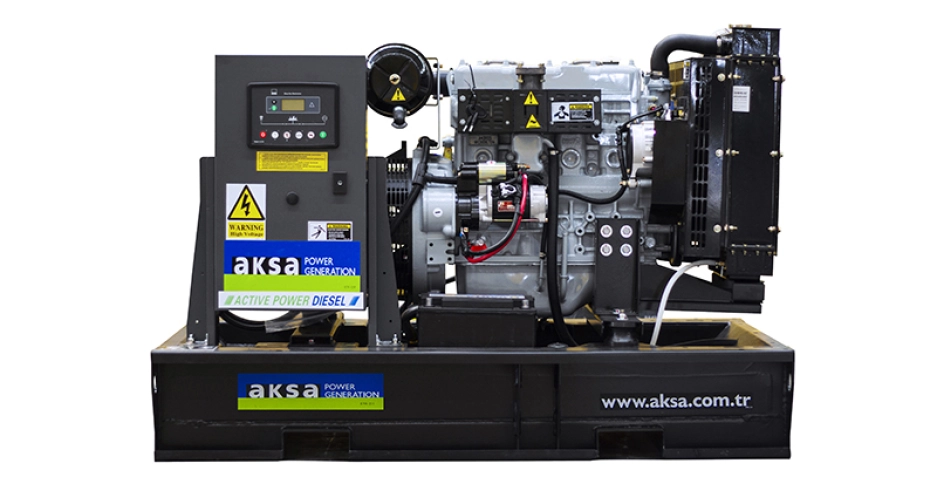

Open Type	DRY WEIGHT (kg.) (kg.)	LENGHT (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	665	1500	900	1061	95

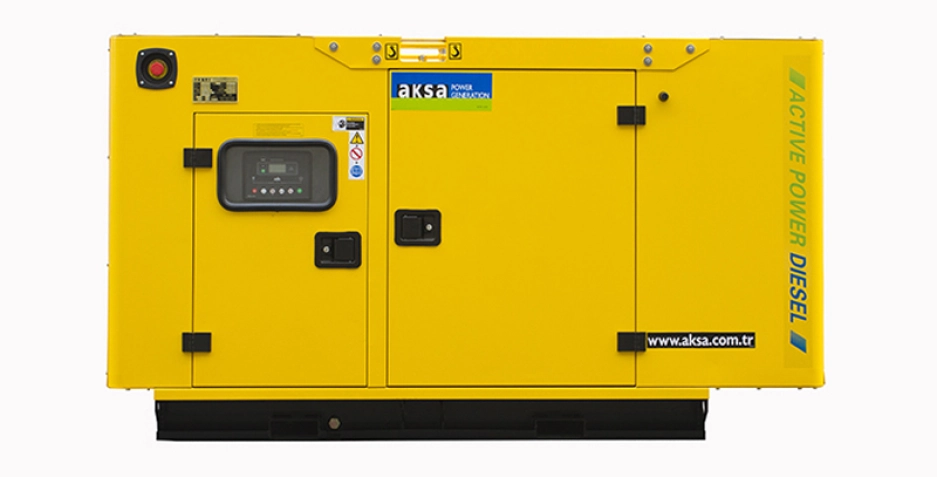

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGHT (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ASM 3	895	1933	963	1213	95

Standart Specifications

Heavy duty, water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Two bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
