Sound-attenuated and weather protective enclosures for generating sets from Aksa, meet event the sound requirements and provide optimum protection from inclement weather and development by our specialist acoustic engineers. Our modular designed sound insulated canopies (8 - 275kVA) fit directly to the open generator set to provide ease of access for servicing and general maintenance and interchangeable components permitting on-site repair. Enclosures are designed to optimize genset cooling
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
| Model Name | APD 20 BD | ||
|---|---|---|---|
| Frequency (Hz) | 50 | ||
| Fuel Type | Diesel | ||
| Engine Made and Model | BAUDOUIN - 4M06G2D0 | ||
| Alternator Made and Model | Aksa - AK 216 | ||
| Control Panel Model | DSE 6120 | ||

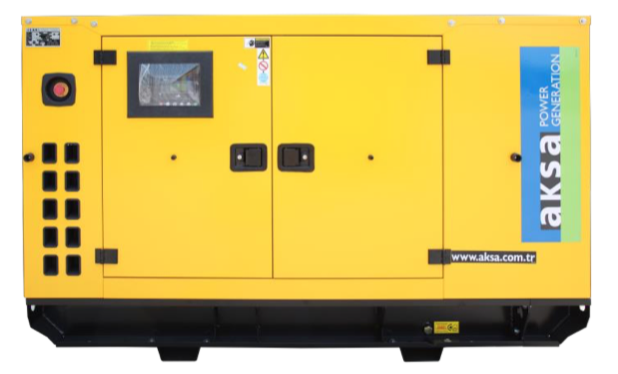

| Canopy | ACP 3A |
| VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
|---|---|---|---|---|---|
| kVA | kW | kVA | kW | ||
| 400/231 | 20 | 16.00 | 18 | 14.40 | 28.87 |
| Engine | BAUDOUIN | ||
|---|---|---|---|
| Engine Model | 4M06G2D0 | ||
| NO. OF CYLINDERS AND BUILD | 4 cylinders - in line | ||
| BORE AND STROKE | mm | 89 X 92 | |
| TOTAL DISPLACEMENT | L | 2.3 | |
| Aspiration | Naturally Aspirated | ||
| COMPRESSION RATIO | 17.5:1 | ||
| RATED SPEED (RPM) | d/dk | 1500 | |
| OIL CAPACITY | L | 11.5 | |
| Standby Power (kW/HP) | 20/26.8 | ||
| Prime Power | 18/24.1 | ||
| Block Heater QTY | |||
| 1 | |||
| Block Heater Power (Watt) | |||
| 500 | |||
| Fuel Type | |||
| Diesel | |||
| Injection Type and System | |||
| Direct | |||
| Type of Fuel Pump | |||
| Mechanical | |||
| Governor System | |||
| Electronic | |||
| Operating Voltage (Vdc) | |||
| 12 Vdc | |||
| Battery and Capacity (Qty/Ah) | |||
| 1x55 | |||
| Charge Alternator (A) | |||
| 35 | |||
| Cooling Method | |||
| Water Cooled | |||
| Cooling Fan Air Flow (m3/min) | |||
| 63 | |||
| Coolant Capacity (engine only / with radiator) (lt) | |||
| 5/8.6 | |||
| Air Filter | |||
| Dry Type | |||
| Fuel Cons. Prime With %100 Load (lt/hr) | |||
| 4.6 | |||
| Fuel Cons. Prime With %75 Load (lt/hr) | |||
| 3.6 | |||
| Fuel Cons. Prime With %50 Load (lt/hr) | |||
| 2.6 | |||
| Manufacturer | Aksa | |
|---|---|---|
| Alternator Made and Model | AK 216 | |
| Frequency (Hz) | Hz | 50 |
| Power (kVA) | kVA | 20 |
| DESIGN | Brushless | |
| VOLTAGE | V | 400 |
| Phase | 3 | |
| A.V.R. | SX460 | |
| Voltage Regulation | (+/-) | 1,5% |
| Insulation System | H | |
| Protection | IP22 | |
| Rated Power Factor | 0.8 | |
| WEIGHT COMP. GENERATOR (Kg) | 128 | |
| COOLING AIR (m³/min) | m3 | 5,7 |
| Open Type | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
|---|---|---|---|---|---|
 |
525 | 1696 | 892 | 1003 | |
| CANOPY | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
ACP 3A |
655 | 1980 | 950 | 1128 | 60 |
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
ENGINE
Fuel-Water Seperator Filter
Low water level alarm
Oil heater
ALTERNATOR
Anti-Condensation Heater
Main line circuit breaker
CONTROL SYSTEM
Earth fault, single set
Charge Ammeter
TRANSFER SWITCH
Three Pole Contactor
Four Pole Contactor
Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
Main Fuel Tank
Automatic or manual fuel filling system
Manual oil drain pump
Low and high fuel level alarm
Enclosure: weater protective or sound attenuated
Trailer
Tool kit for maintenance
