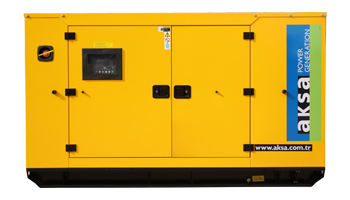

Дизельный генератор
Aksa APD 110 BD

Модель : APD 110 BD

Двигатель : BAUDOUIN

Модель панели управления : DSE 6120

О продукте

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Сертификаты

- TS ISO 8528

- CE

- SZUTEST

- 2000/14/EC

Общие Характеристики

Model Name		APD 110 BD
Frequency (Hz)		50
Fuel Type		Diesel
Engine Made and Model		BAUDOUIN - 4M10G6D0
Alternator Made and Model		Aksa - AK 480
Control Panel Model		DSE 6120
Canopy		ACP 6A

3 Phase,50 Hz, PF 0,8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	110	88.00	100	80.00	158.78

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

Особенности двигателя

Block Heater QTY
Engine		BAUDOUIN
Engine Model		4M10G6D0
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	105 X 118
TOTAL DISPLACEMENT	L	4.087
Aspiration		Turbo Charged and Air to Air AfterCooled
COMPRESSION RATIO		17.5:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	13
Standby Power (kW/HP)		100/134
Prime Power		90/121
Block Heater QTY		1
Block Heater Power (Watt)
Block Heater Power (Watt)		1000
Fuel Type
Fuel Type		Diesel
Injection Type and System
Injection Type and System		Direct
Type of Fuel Pump
Type of Fuel Pump		Mechanical
Governor System
Governor System		Electronic
Operating Voltage (Vdc)
Operating Voltage (Vdc)		12 Vdc
Battery and Capacity (Qty/Ah)
Battery and Capacity (Qty/Ah)		1x66
Charge Alternator (A)
Charge Alternator (A)		55
Cooling Method
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)
Cooling Fan Air Flow (m3/min)		175
Coolant Capacity (engine only / with radiator) (lt)
Coolant Capacity (engine only / with radiator) (lt)		9.4/23.6
Air Filter
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
Fuel Cons. Prime With %100 Load (lt/hr)		21.25
Fuel Cons. Prime With %75 Load (lt/hr)
Fuel Cons. Prime With %75 Load (lt/hr)		16,01
Fuel Cons. Prime With %50 Load (lt/hr)
Fuel Cons. Prime With %50 Load (lt/hr)		10.58

Тип Алтернатора

Manufacturer		Aksa
Alternator Made and Model		AK 480
Frequency (Hz)	Hz	50
Power (kVA)	kVA	100
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		406
COOLING AIR (m³/min)	m3	30,84

Вес и размер

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	1230	2348	1004	1331
CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 6A	1480	2600	1058	1590	180

Стандартные функции

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

Оборудование на заказ

ENGINE
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three Pole Contactor
• Four Pole Contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Automatic transfer switch
